Aluminium Sanitary Tube Manufacturer Aluminium Sanitary Tube Supplier,Aluminium Sanitary Tube ExporterAluminium Precision Tubing,Aluminium Sanitary Small Diameter Tube Aluminium Sanitary Tubes

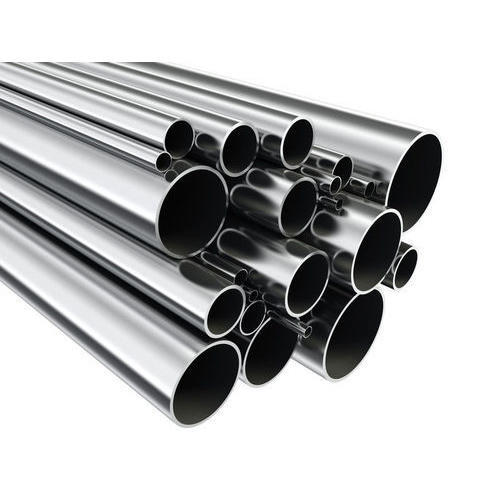

Aluminium sanitary tubes are high-precision tubes crafted from premium-grade aluminium alloys, engineered for industries that demand sanitary standards—such as food processing, pharmaceuticals, and dairy. These tubes are meticulously designed for hygiene, corrosion resistance, and ease of cleaning, making them indispensable in sterile environments where purity and product integrity are non-negotiable.
As a seasoned manufacturer, supplier, and exporter, Sumer Metal Industries Pvt. Ltd. leverages advanced production processes—including seamless extrusion, drawing, and state-of-the-art surface finishing—to deliver tubes that consistently meet stringent quality benchmarks. Every aluminium sanitary tube undergoes rigorous dimensional and surface inspections to ensure smooth finishes and flawless geometry, essential for preventing bacterial buildup.
Our aluminium sanitary tubes are supplied to markets across the Middle East (Oman, Qatar, Saudi Arabia, the UAE, Kuwait), North America (USA, Canada), Europe (Spain, Germany), and various regions across Africa. Our export operations emphasize responsive logistics, compliance with international standards, and timely deliveries to support global businesses in critical sectors.
These tubes are made from food-grade aluminium alloys (such as 3003 or 5083), selected for their non-reactivity, mechanical strength, and thermal properties. They maintain excellent dimensional stability under pressure and temperature variations and are typically available in seamless, ERW (electric resistance welded), or drawn formats. Surface finishes include bright annealed or mechanical polishing to achieve hygienic surfaces with minimal roughness.
Specification of Aluminium Sanitary tubes
| Alloy / Temper | Chemical Composition (wt %) | Mechanical Properties<br>(Tensile / Yield / Elongation) | Additional Physical Properties |
|---|---|---|---|
| 3003‑O | Si: ≤0.6, Fe: ≤0.7, Cu: 0.05–0.20, Mn: 1.0–1.5, Other: ≤0.15, Balance Al | Tensile: ≈130 MPa, Yield: ≈125 MPa, Elongation: ≈10% | Density: 2.70 g/cm³, Modulus: ≈70–80 GPa, Thermal Conductivity: ≈170 W/m·K |
| 5083‑O (AlMg4–4.9Mn) | Mg: 4.0–4.9, Mn: 0.4–1.0, Cr: 0.05–0.25, Fe: ≤0.4, Si: ≤0.4, Cu: ≤0.1, Zn: ≤0.25, Ti: ≤0.15, Balance Al | Tensile: 270–350 MPa, Yield: ≥110 MPa, Elongation: ~16% (O temper) | Density: ≈2.70 g/cm³, Modulus: ≈68 GPa, Thermal Conductivity: ≈120 W/m·K |
| 5083‑H111 | Same as above | Tensile: ~275 MPa, Yield: ~165 MPa, Elongation: ~12% | High corrosion resistance for marine/industrial use |
| 6061‑T6 (for reference) | Si: 0.4–0.8, Mg: 0.8–1.2, Cu: 0.15–0.40, Cr: 0.04–0.35, Fe & others: remaining trace, Balance Al | Tensile: ~310 MPa, Yield: ~270 MPa, Elongation: ≥8% (thin); Young’s Modulus: ≈69 GPa | Versatile with excellent weldability and structural capability |
Aluminium sanitary tubes are widely adopted in sanitary pipelines, product transfer systems, and hygienic frameworks in the dairy, beverage, pharmaceutical, and food industries. Their inert nature and ability to sustain repeated cleaning cycles—using CIP (Clean-In-Place) or SIP (Sterilize-In-Place) methods—make them reliable for environments with rigorous health and safety requirements.
Chemical Composition of Aluminium Sanitary tubes
| Element | 3003 Alloy (% max) | 5083 Alloy (% max) | 6061 Alloy (% max) |
|---|---|---|---|
| Aluminium (Al) | Balance | Balance | Balance |
| Silicon (Si) | 0.60 | 0.40 | 0.40–0.80 |
| Iron (Fe) | 0.70 | 0.40 | 0.70 |
| Copper (Cu) | 0.05–0.20 | 0.10 | 0.15–0.40 |
| Manganese (Mn) | 1.00–1.50 | 0.40–1.00 | 0.15 |
| Magnesium (Mg) | — | 4.0–4.9 | 0.80–1.20 |
| Chromium (Cr) | — | 0.05–0.25 | 0.04–0.35 |
| Zinc (Zn) | 0.10 | 0.25 | 0.25 |
| Titanium (Ti) | — | 0.15 | 0.15 |
| Other elements (each) | 0.05 | 0.05 | 0.05 |
| Other elements (total) | 0.15 | 0.15 | 0.15 |
Available in a wide range of diameters, wall thicknesses, and finishes, aluminium Sanitary tubes are manufactured according to international standards such as ASTM B210 and B241. Whether used in pneumatic control systems, fuel and oil lines, laboratory setups, or HVAC systems, these tubes offer an efficient and cost-effective solution for modern Sanitary needs. With their adaptability and high-performance characteristics, aluminium Sanitary tubes continue to be a preferred choice in both industrial and commercial sectors.
Specification of Aluminium Sanitary tubes
| Alloy / Temper | Chemical Composition (wt %) | Mechanical Properties<br>(Tensile / Yield / Elongation) | Additional Physical Properties |
|---|---|---|---|
| 3003‑O | Si: ≤0.6, Fe: ≤0.7, Cu: 0.05–0.20, Mn: 1.0–1.5, Other: ≤0.15, Balance Al | Tensile: ≈130 MPa, Yield: ≈125 MPa, Elongation: ≈10% | Density: 2.70 g/cm³, Modulus: ≈70–80 GPa, Thermal Conductivity: ≈170 W/m·K |
| 5083‑O (AlMg4–4.9Mn) | Mg: 4.0–4.9, Mn: 0.4–1.0, Cr: 0.05–0.25, Fe: ≤0.4, Si: ≤0.4, Cu: ≤0.1, Zn: ≤0.25, Ti: ≤0.15, Balance Al | Tensile: 270–350 MPa, Yield: ≥110 MPa, Elongation: ~16% (O temper) | Density: ≈2.70 g/cm³, Modulus: ≈68 GPa, Thermal Conductivity: ≈120 W/m·K |
| 5083‑H111 | Same as above | Tensile: ~275 MPa, Yield: ~165 MPa, Elongation: ~12% | High corrosion resistance for marine/industrial use |
| 6061‑T6 (for reference) | Si: 0.4–0.8, Mg: 0.8–1.2, Cu: 0.15–0.40, Cr: 0.04–0.35, Fe & others: remaining trace, Balance Al | Tensile: ~310 MPa, Yield: ~270 MPa, Elongation: ≥8% (thin); Young’s Modulus: ≈69 GPa | Versatile with excellent weldability and structural capability |
🏭 Industry & Application
- ✅ Aluminium Sanitary Tubes for Medical Industry
- ✅ Aluminium Sanitary Tubes for Chemical Processing
- ✅ Aluminium Sanitary Tubes for Sanitary Lines
- ✅ Aluminium Sanitary tubes for Gas & Liquid Flow
- ✅ Aluminium Tubes for Heat Exchangers
❓ Frequently Asked Questions (FAQs)
Q1:What are aluminium sanitary tubes used for?
Aluminium sanitary tubes are primarily used in industries that require high levels of cleanliness and corrosion resistance, such as food processing, pharmaceuticals, dairy production, biotechnology, and chemical handling. These tubes are designed to withstand regular sterilization cycles (like CIP and SIP) and prevent contamination of sensitive products.
Q2: Which aluminium grades are commonly used for sanitary tubing?
3003 is known for excellent corrosion resistance and formability. 5083 provides higher strength and is suitable for pressure-bearing hygienic applications. 6061 is used where additional mechanical strength is needed, though it's less typical in direct contact sanitary systems.
Q3: Are aluminium sanitary tubes safe for food and pharmaceutical applications?
Yes, when manufactured using food-grade aluminium alloys, aluminium sanitary tubes are safe and widely accepted for food, beverage, and pharma-grade applications. They are non-toxic, corrosion-resistant, easy to sterilize, and comply with international hygiene standards, making them ideal for environments where product purity is critical.
Aluminium Sanitary tubes exporter
