Duplex Steel S32205 Sanitary Tubes, Duplex Steel 32205 Sanitary Tubes, 32205 Duplex Steel Sanitary Tube Manufacturer, Duplex Steel 32205 Sanitary Tube Supplier, Duplex Steel 32205 Sanitary Tube Exporter, Duplex Steel 32205 Precision Tubing, Duplex Steel 32205 Small Diameter Tube ,Duplex Steel 32205 Sanitary Tubes

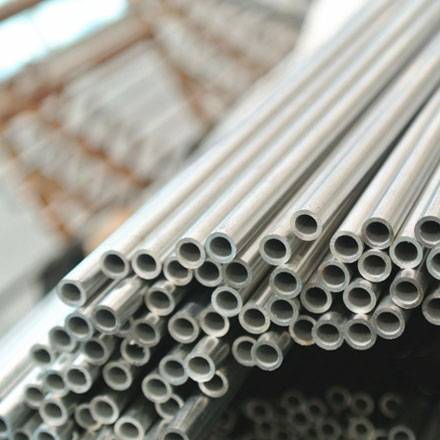

Duplex Steel S32205 sanitary tubes are high-performance stainless steel tubes known for their excellent strength and corrosion resistance. This grade, also known as UNS S32205, is a nitrogen-enhanced duplex stainless steel that offers a balanced mixture of austenitic and ferritic steel structures. Its dual-phase microstructure gives it a unique combination of mechanical properties, including high tensile strength and improved resistance to stress corrosion cracking, making it ideal for demanding sanitary applications.
These sanitary tubes are widely used in industries where hygiene, cleanliness, and corrosion resistance are critical. Common applications include food processing, pharmaceutical production, dairy, and beverage industries. The smooth internal surface finish of sanitary tubes minimizes the risk of bacterial buildup and allows for easy cleaning, which is essential for maintaining high sanitary standards. Duplex S32205’s resistance to pitting, crevice corrosion, and chloride-induced corrosion makes it a reliable choice for such environments.
One of the key advantages of S32205 over conventional stainless steels like 304 or 316 is its superior strength-to-weight ratio. This allows for the use of thinner tube walls without compromising structural integrity, reducing material costs while maintaining performance. The duplex structure also provides excellent fatigue strength, which is beneficial for systems exposed to cyclic loading or vibration.
Manufacturers of Duplex S32205 sanitary tubes ensure strict compliance with industry standards such as ASTM A789 and ASME SA789. Tubes are available in a variety of sizes and finishes, including electropolished or mechanically polished options to meet specific sanitary requirements. The tubes are usually fabricated using precision welding and seamless methods to maintain integrity and performance under pressure and temperature variations.
Specification of Duplex Steel S32205 Sanitary Tubes
| Specification Parameter | Details |
|---|---|
| Material Grade | Duplex Stainless Steel S32205 (UNS S32205) |
| Chemical Composition (wt%) | Cr: 22.0-23.0%, Ni: 4.5-6.5%, Mo: 2.5-3.5%, N: 0.14-0.20%, C: ≤0.03%, Mn: ≤2.0%, Si: ≤0.8%, Fe: Balance |
| Standards | ASTM A789 / ASME SA789 |
| Microstructure | Duplex (approximately 50% ferrite and 50% austenite) |
| Tensile Strength | ≥ 620 MPa |
| Yield Strength (0.2% offset) | ≥ 450 MPa |
| Elongation (%) | ≥ 25% |
| Hardness | ≤ 300 HV (Vickers) |
| Corrosion Resistance | Excellent resistance to pitting, crevice corrosion, chloride stress corrosion cracking |
| Surface Finish | Electro-polished or mechanically polished; Ra ≤ 0.4 µm for sanitary applications |
| Tube Type | Seamless or Welded |
| Dimensions | Outer Diameter: typically 6 mm to 219 mm, Wall Thickness: 1 mm to 8 mm (custom sizes available) |
| Temperature Range | Operating temperature: -50°C to 300°C (up to 350°C intermittently) |
| Applications | Food processing, pharmaceutical, dairy, beverage, chemical industries |
| Density | Approximately 7.8 g/cm³ |
| Thermal Conductivity | ~15 W/m·K at 20°C |
| Modulus of Elasticity | ~200 GPa |
In summary, Duplex Steel S32205 sanitary tubes combine high mechanical strength, superior corrosion resistance, and hygienic qualities, making them a top-tier choice for sanitary piping systems. Their durability, cost-effectiveness, and long service life help reduce maintenance needs and downtime in critical process industries, making them a smart investment for operations focused on reliability and cleanliness.
Chemical Composition of Duplex Steel S32205 Sanitary Tubes
| Element | Typical Composition (wt%) |
|---|---|
| Carbon (C) | ≤ 0.03 |
| Chromium (Cr) | 22.0 – 23.0 |
| Nickel (Ni) | 4.5 – 6.5 |
| Molybdenum (Mo) | 2.5 – 3.5 |
| Nitrogen (N) | 0.14 – 0.20 |
| Manganese (Mn) | ≤ 2.0 |
| Silicon (Si) | ≤ 0.8 |
| Phosphorus (P) | ≤ 0.03 |
| Sulfur (S) | ≤ 0.01 |
| Iron (Fe) | Balance |
With a proven track record as a Duplex Steel S32205 Sanitary Tubes exporter in over 30 countries, Sumer Metal Industries ensures global availability, third-party inspection support, and client-specific customization. Our wide export network combined with strict quality standards has made us a preferred choice for SS 32205 tubing worldwide.
Specification of Duplex Steel S32205 Sanitary Tubes
| Specification Parameter | Details |
|---|---|
| Material Grade | Duplex Stainless Steel S32205 (UNS S32205) |
| Chemical Composition (wt%) | Cr: 22.0-23.0%, Ni: 4.5-6.5%, Mo: 2.5-3.5%, N: 0.14-0.20%, C: ≤0.03%, Mn: ≤2.0%, Si: ≤0.8%, Fe: Balance |
| Standards | ASTM A789 / ASME SA789 |
| Microstructure | Duplex (approximately 50% ferrite and 50% austenite) |
| Tensile Strength | ≥ 620 MPa |
| Yield Strength (0.2% offset) | ≥ 450 MPa |
| Elongation (%) | ≥ 25% |
| Hardness | ≤ 300 HV (Vickers) |
| Corrosion Resistance | Excellent resistance to pitting, crevice corrosion, chloride stress corrosion cracking |
| Surface Finish | Electro-polished or mechanically polished; Ra ≤ 0.4 µm for sanitary applications |
| Tube Type | Seamless or Welded |
| Dimensions | Outer Diameter: typically 6 mm to 219 mm, Wall Thickness: 1 mm to 8 mm (custom sizes available) |
| Temperature Range | Operating temperature: -50°C to 300°C (up to 350°C intermittently) |
| Applications | Food processing, pharmaceutical, dairy, beverage, chemical industries |
| Density | Approximately 7.8 g/cm³ |
| Thermal Conductivity | ~15 W/m·K at 20°C |
| Modulus of Elasticity | ~200 GPa |
🏭 Industry & Application
- ✅ Duplex Steel S32205 Sanitary Tubes for Medical Industry
- ✅ Duplex Steel S32205 Sanitary Tubes for Chemical Processing
- ✅ Duplex Steel S32205 Tubes for Sanitary Lines
- ✅ Duplex Steel S32205 Sanitary Tubes for Gas & Liquid Flow
- ✅ Duplex Steel S32205 Tubes for Heat Exchangers
❓ Frequently Asked Questions (FAQs)
Q1: What is Duplex Steel S32205?
Duplex Steel S32205 is a nitrogen-enhanced duplex stainless steel grade with a balanced microstructure of ferrite and austenite, known for its high strength and excellent corrosion resistance.
Q2: Why is S32205 used for sanitary tubes?
It offers superior corrosion resistance to chlorides and stress corrosion cracking, combined with high mechanical strength and a smooth surface finish, making it ideal for hygienic applications like food, dairy, and pharmaceuticals.
Q3:What standards do S32205 sanitary tubes conform to?
Common standards include ASTM A789 / ASME SA789 for seamless and welded duplex stainless steel tubes.
