Hastelloy C22 C2000 B2 B3 Clad , Hastelloy C22 C2000 B2 B3 Clad Manufacturer, Hastelloy C22 C2000 B2 B3 Clad Supplier, Hastelloy C22 C2000 B2 B3 Clad Exporter, Hastelloy C22 C2000 B2 B3 Clad Precision Tubing, Hastelloy C22 C2000 B2 B3 Clad Small Diameter Tube , Hastelloy C22 C2000 B2 B3 Clad Clad Tubes

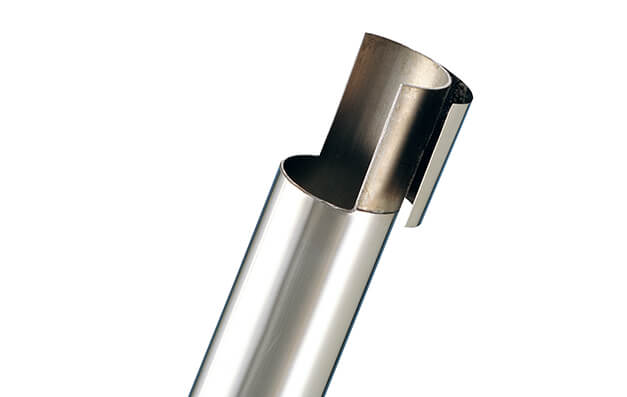

Hastelloy C22, C2000, B2 and B3 clad tubes from Sumer Metal Industries Private Limited are engineered for the most aggressive chemical and process environments. Manufactured using precision cladding techniques, these tubes combine a corrosion-resistant Hastelloy overlay (or solid Hastelloy construction where specified) with a cost-efficient backing/parent material to give excellent resistance to pitting, crevice corrosion and stress-corrosion cracking while keeping fabrication and installation costs down. These clad tubes are widely used in chemical processing, pharma, desalination, offshore oil & gas, and pollution control equipment.
Sumer Metal Industries supplies these clad tubes in annealed and cold-worked tempers with full traceability and material certificates (MTCs) compliant with international standards. Typical product testing includes PMI/positive material identification, hydrostatic testing, dimensional inspection, visual & NDT as per customer spec, and packing for sea export. The company exports to Oman, Qatar, Saudi Arabia, the UAE, Kuwait, Spain, Germany, the USA, Canada and multiple countries across Africa, supporting both small bespoke orders and large project volumes.
Hastelloy C-22 (UNS N06022) clad tubes deliver a unique balance of high chromium and molybdenum plus tungsten that gives broad resistance to both oxidizing and reducing media — making C-22 the go-to alloy where mixed or uncertain chemistries are expected. Hastelloy C-2000 (UNS N06200) adds a controlled copper addition to further increase sulphuric-acid resistance while retaining excellent resistance to oxidizing conditions. Hastelloy B2 (UNS N10665) and B3 (UNS N10675) are nickel-molybdenum alloys optimized for extremely reducing environments (strong hydrochloric and sulfuric acids) — B3 is an improved, more thermally stable evolution of B2. Use these grades where service chemistry is known to be strongly reducing.
Sumer Metal’s clad tubes are manufactured to tight dimensional tolerances and are offered in ranges of outside diameters and wall thicknesses to suit heat-exchangers, condensers, reactors and piping replacement applications. Typical lengths are supplied as random cut lengths, single-piece lengths up to project requirements, or precision cut and chamfered ends — and all exports are packed to withstand long-distance sea and air freight. Technical support for weld procedures (WPS/PQR), post-weld heat treatment advice and compatibility checks with customers’ base materials are provided as part of the supply package.
Specification of Hastelloy C22 C2000 B2 B3 Clad
| Product | Grades | UNS | W.Nr. | Condition | Forms Available | Standards |
|---|---|---|---|---|---|---|
| Clad Tubes | Hastelloy C-22 | N06022 | 2.4602 | Annealed / Cold Worked | Clad Tubes, Heat Exchanger Tubes, Condenser Tubes | ASTM B622 / ASTM B626 |
| Clad Tubes | Hastelloy C-2000 | N06200 | 2.4675 | Annealed / Cold Worked | Clad Tubes, Precision Cut Tubes | ASTM B622 / ASTM B626 |
| Clad Tubes | Hastelloy B-2 | N10665 | 2.4617 | Annealed / Cold Worked | Clad Tubes, Piping Tubes, Heat Exchanger Tubes | ASTM B622 / ASTM B626 |
| Clad Tubes | Hastelloy B-3 | N10675 | 2.4600 | Annealed / Cold Worked | Clad Tubes, Condenser Tubes, Special Length Tubes | ASTM B622 / ASTM B626 |
Quality assurance is central: every lot is backed by chemical analysis, mechanical test records, and where required, third-party inspection. Sumer Metal Industries also offers customization — special cladding thicknesses, tailored backing materials, and secondary machining — to meet OEM and EPC project specifications. Lead times, delivery terms (EXW / FOB / CIF), and project documentation are provided in the quotation pack.
Chemical Composition of Hastelloy C22 C2000 B2 B3 Clad
| Alloy | Ni (Nickel) | Cr (Chromium) | Mo (Molybdenum) | W (Tungsten) | Cu (Copper) | Fe (Iron) | Other Elements |
|---|---|---|---|---|---|---|---|
| Hastelloy C-22 (UNS N06022) | Balance | 20.0 – 22.5 | 12.5 – 14.5 | 2.5 – 3.5 | - | 2.0 – 6.0 | C ≤ 0.015, Co ≤ 2.5, Mn ≤ 0.5, Si ≤ 0.08 |
| Hastelloy C-2000 (UNS N06200) | Balance (~59) | 22.0 – 23.0 | 15.0 – 16.0 | - | 1.3 – 1.6 | ~3.0 | C ≤ 0.01, Mn ≤ 0.5, Si ≤ 0.08 |
| Hastelloy B-2 (UNS N10665) | Balance (~68) | < 1.0 | 26.0 – 30.0 | - | - | ~2.0 | C ≤ 0.02, Mn ≤ 1.0, Si ≤ 0.1 |
| Hastelloy B-3 (UNS N10675) | Balance | < 1.5 | 27.0 – 31.0 | - | - | ~2.0 | C ≤ 0.02, Mn ≤ 1.5, Si ≤ 0.1 (improved thermal stability vs B-2) |
With a proven track record as a Hastelloy C22 C2000 B2 B3 Clad exporter in over 30 countries, Sumer Metal Industries ensures global availability, third-party inspection support, and client-specific customization. Our wide export network combined with strict quality standards has made us a preferred choice for SS 202 tubing worldwide.
Specification of Hastelloy C22 C2000 B2 B3 Clad
| Product | Grades | UNS | W.Nr. | Condition | Forms Available | Standards |
|---|---|---|---|---|---|---|
| Clad Tubes | Hastelloy C-22 | N06022 | 2.4602 | Annealed / Cold Worked | Clad Tubes, Heat Exchanger Tubes, Condenser Tubes | ASTM B622 / ASTM B626 |
| Clad Tubes | Hastelloy C-2000 | N06200 | 2.4675 | Annealed / Cold Worked | Clad Tubes, Precision Cut Tubes | ASTM B622 / ASTM B626 |
| Clad Tubes | Hastelloy B-2 | N10665 | 2.4617 | Annealed / Cold Worked | Clad Tubes, Piping Tubes, Heat Exchanger Tubes | ASTM B622 / ASTM B626 |
| Clad Tubes | Hastelloy B-3 | N10675 | 2.4600 | Annealed / Cold Worked | Clad Tubes, Condenser Tubes, Special Length Tubes | ASTM B622 / ASTM B626 |
🏭 Industry & Application
- ✅ Hastelloy C22 C2000 B2 B3 Clad for Medical Industry
- ✅ Hastelloy C22 C2000 B2 B3 Clad for Chemical Processing
- ✅ Hastelloy C22 C2000 B2 B3 Clad Clad Lines
- ✅ Hastelloy C22 C2000 B2 B3 Clad for Gas & Liquid Flow
- ✅ Hastelloy C22 C2000 B2 B3 Clad for Heat Exchangers
❓ Frequently Asked Questions (FAQs)
Q1: What is the difference between Hastelloy C-22 and C-2000 clad tubes?
A: Hastelloy C-22 is optimized for broad resistance to both oxidizing and reducing environments, offering excellent resistance to pitting and crevice corrosion. Hastelloy C-2000 includes a controlled copper addition which improves resistance to sulphuric acid and oxidizing impurities. Choose C-2000 for sulphuric-acid process service and C-22 for general corrosive environments.
Q2: Are Hastelloy B2 and B3 clad tubes suitable for hydrochloric acid service?
A: Yes, Hastelloy B2 and B3 are specifically formulated for superior resistance in strongly reducing acids, including hydrochloric acid. B3 is an improved version of B2, offering enhanced thermal and structural stability in prolonged service.
Q3: Can Sumer Metal Industries supply custom clad thicknesses and perform PMI/NDT inspection for export projects?
A: Absolutely. Sumer Metal Industries provides custom clad thicknesses, backing materials, full inspection (PMI, NDT, hydrostatic testing, MTC) and complete project documentation for export to Oman, Qatar, Saudi Arabia, UAE, Kuwait, Spain, Germany, USA, Canada, and several regions across Africa.
