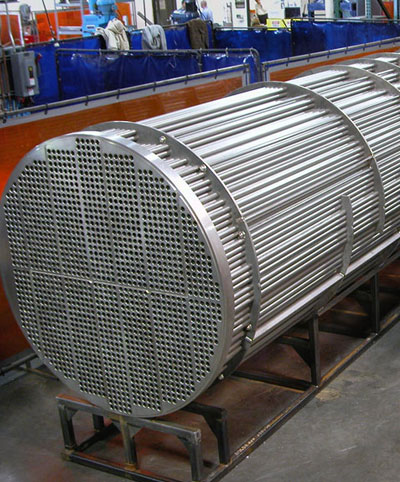

Hastelloy C22, C2000, B2, and B3 condenser tubes are high-performance nickel-based alloy tubes manufactured by Sumer Metal Industries Pvt. Ltd., a leading supplier and exporter of corrosion-resistant industrial tubes. These tubes are specifically designed for chemical, petrochemical, and marine applications where extreme corrosion resistance is essential.
Sumer Metal Industries exports Hastelloy condenser tubes to a wide range of countries, including Oman, Qatar, Saudi Arabia, UAE, Kuwait, Spain, Germany, USA, Canada, and various regions across Africa. Their global distribution ensures that industries worldwide have access to premium-quality, durable condenser tubes.
Hastelloy C22 and C2000 tubes are widely used in chemical reactors, heat exchangers, evaporators, and condensers. B2 and B3 tubes are especially suitable for applications involving strong hydrochloric acid, ferric chloride, and other highly corrosive environments. Their superior corrosion resistance ensures longer operational life.
These tubes are made from nickel-chromium-molybdenum alloys with precise chemical compositions. Hastelloy C22 and C2000 are known for excellent resistance to pitting, crevice corrosion, and oxidizing and reducing agents. B2 and B3 alloys are highly resistant to strong reducing acids.
Specification of Hastelloy C22 C2000 B2 B3 Condenser
| Alloy | Density (g/cm³) | Melting Point (°C) | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) | Corrosion Resistance | Applications |
|---|---|---|---|---|---|---|---|
| C22 | 8.69 | 1399 | 310 | 690 | 45 | Excellent against oxidizing and reducing agents | Chemical reactors, heat exchangers, condensers |
| C2000 | 8.89 | 1370 | 310 | 690 | 45 | Outstanding pitting and crevice corrosion resistance | Chemical process, petrochemical, marine condensers |
| B2 | 9.2 | 1370 | 350 | 760 | 40 | Highly resistant to strong reducing acids | Hydrochloric acid, ferric chloride, industrial condensers |
| B3 | 9.2 | 1370 | 350 | 760 | 40 | Superior resistance to reducing environments | Chemical and petrochemical condensers |
These tubes are available in multiple diameters and wall thicknesses to suit various condenser applications. The tubes conform to international standards and are manufactured under strict quality control to meet ASTM, ASME, and UNS specifications.
Chemical Composition of Hastelloy C22 C2000 B2 B3 Condenser
| Alloy | Nickel (Ni) | Chromium (Cr) | Molybdenum (Mo) | Iron (Fe) | Tungsten (W) | Manganese (Mn) | Silicon (Si) | Carbon (C) | Sulfur (S) | Phosphorus (P) | Cobalt (Co) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C22 | 56–60% | 20–22.5% | 12.5–14.5% | 2–6% | 3% | 0.5% | 0.08% | 0.01% | 0.02% | 0.02% | 2.5% |
| C2000 | ≥65% | 14.5–16.5% | 15–17% | ≤2.5% | - | ≤1% | ≤0.08% | ≤0.01% | ≤0.03% | ≤0.04% | ≤0.2% |
| B2 | Balance | ≤1% | 26–30% | ≤2% | - | ≤1% | ≤0.10% | ≤0.02% | ≤0.03% | ≤0.04% | ≤1% |
| B3 | ≥65% | 28.5% | ≤3% | ≤3% | - | 1.5% | 1.5% | 0.01% | 0.5% | 0.2% | 10% |
With a proven track record as a Hastelloy C22 C2000 B2 B3 Condenser exporter in over 30 countries, Sumer Metal Industries ensures global availability, third-party inspection support, and client-specific customization. Our wide export network combined with strict quality standards has made us a preferred choice for SS 202 tubing worldwide.
Specification of Hastelloy C22 C2000 B2 B3 Condenser
| Alloy | Density (g/cm³) | Melting Point (°C) | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) | Corrosion Resistance | Applications |
|---|---|---|---|---|---|---|---|
| C22 | 8.69 | 1399 | 310 | 690 | 45 | Excellent against oxidizing and reducing agents | Chemical reactors, heat exchangers, condensers |
| C2000 | 8.89 | 1370 | 310 | 690 | 45 | Outstanding pitting and crevice corrosion resistance | Chemical process, petrochemical, marine condensers |
| B2 | 9.2 | 1370 | 350 | 760 | 40 | Highly resistant to strong reducing acids | Hydrochloric acid, ferric chloride, industrial condensers |
| B3 | 9.2 | 1370 | 350 | 760 | 40 | Superior resistance to reducing environments | Chemical and petrochemical condensers |
🏭 Industry & Application
- ✅ Hastelloy C22 C2000 B2 B3 Condenser for Medical Industry
- ✅ Hastelloy C22 C2000 B2 B3 Condenser for Chemical Processing
- ✅ Hastelloy C22 C2000 B2 B3 Condenser Condenser Lines
- ✅ Hastelloy C22 C2000 B2 B3 Condenser for Gas & Liquid Flow
- ✅ Hastelloy C22 C2000 B2 B3 Condenser for Heat Exchangers
❓ Frequently Asked Questions (FAQs)
Q1: What are Hastelloy C22 and C2000 condenser tubes used for?
A1: Hastelloy C22 and C2000 condenser tubes are used in chemical, petrochemical, and marine industries for condensers, heat exchangers, and chemical reactors due to their excellent resistance to oxidizing and reducing agents.
Q2: What is the difference between B2 and B3 Hastelloy tubes?
A2: B2 tubes have higher molybdenum content and are resistant to strong reducing acids, while B3 tubes have higher nickel and chromium content, providing superior resistance to both reducing and oxidizing environments.
Q3: Which industries benefit the most from these tubes?
A3: These tubes are ideal for the chemical, petrochemical, pharmaceutical, offshore, and marine industries where resistance to corrosion and high-temperature stability is critical.
Q4: What are the typical dimensions of Hastelloy condenser tubes?
A4: Hastelloy condenser tubes are available in multiple diameters (1/4", 3/8", 1/2", 3/4", etc.) and wall thicknesses (0.028"–0.120") to suit various condenser applications and operating pressures.
Q5: Are these tubes compliant with international standards?
A5: Yes, they are manufactured in compliance with international standards such as ASTM, ASME, and UNS specifications, ensuring quality and global compatibility.
Q6: Can these tubes withstand highly corrosive environments?
A6: Absolutely. Hastelloy C22, C2000, B2, and B3 tubes are specifically engineered to resist corrosion from strong oxidizing and reducing chemicals, including hydrochloric acid, ferric chloride, and other industrial acids.
Q7: Which countries are the primary export destinations?
A7: Sumer Metal Industries exports these condenser tubes to Oman, Qatar, Saudi Arabia, UAE, Kuwait, Spain, Germany, USA, Canada, and several regions across Africa.
