Inconal 625 Sanitary tubes, Inconal 625 Sanitary Tube Manufacturer, Inconal 625 Sanitary Tube Supplier, Inconal 625 Sanitary Tube Exporter, Inconal 625 Precision Tubing, Inconal 625 Small Diameter Tube ,Inconal 625 Sanitary Tubes

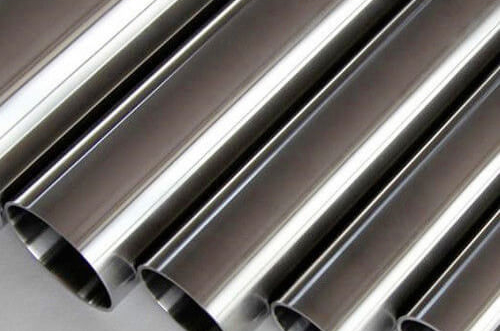

Inconel 625 sanitary tubes are high-performance, nickel-based alloy tubing products specifically engineered for hygienic and corrosion-prone environments. These tubes are made primarily of nickel, with additions of chromium, molybdenum, and niobium, which contribute to their exceptional strength, oxidation resistance, and durability under a wide range of temperatures and pressures. Designed with a focus on cleanliness, these tubes are widely used in industries that require sterile processing systems, including pharmaceuticals, food and beverage production, biotechnology, and high-purity chemical applications.
Manufactured by Sumer Metal Industries Private Limited, these Inconel 625 sanitary tubes are produced using stringent quality control processes. Available in seamless and welded forms, they are finished with surface treatments such as bright annealing, electropolishing, and mirror polishing to reduce microbial adhesion and ensure easy cleaning during CIP/SIP (Clean-in-Place/Sterilize-in-Place) processes. The tubes can be customized in various outer diameters and wall thicknesses to meet specific sanitary standards like ASTM B444 and ASME SB444.
The alloy’s key strength lies in its exceptional corrosion resistance, particularly in chloride-rich environments, oxidizing acids, seawater, and other aggressive media. This makes Inconel 625 sanitary tubes a reliable choice not only for sanitary systems but also for piping in harsh marine, offshore, and chemical environments. The addition of molybdenum and niobium strengthens the alloy against pitting, crevice corrosion, and stress-corrosion cracking—common failure modes in critical processing systems.
Mechanically, Inconel 625 tubes retain their tensile and yield strength even at elevated temperatures up to 980°C (1800°F), with outstanding fatigue and creep resistance. These properties make them suitable for both static and dynamic applications, including heat exchangers, reactors, and condenser systems. The tubes’ weldability and formability further add to their versatility, allowing fabricators to manufacture complex assemblies while maintaining structural integrity.
Specification of Inconal 625Sanitary tubes
| Parameter | Specification |
|---|---|
| Material Grade | Inconel® 625 / UNS N06625 / W.Nr. 2.4856 |
| Product Type | Sanitary Tubes (Seamless / Welded) |
| Standards | ASTM B444 / B704 / B705, ASME SB444 / SB704 / SB705 |
| Outer Diameter (OD) | 6 mm to 114.3 mm (1/4" to 4.5") |
| Wall Thickness | 0.5 mm to 10 mm (Sch 5S to Sch 40S or customized) |
| Tube Length | Single Random (4–7 meters), Double Random (7–13 meters), or Custom Cut Lengths |
| Finish Options | Bright Annealed, Polished, Pickled, Mirror Finish (No. 4 / No. 8), Electropolished |
| End Connections | Plain End (PE), Beveled End (BE), Threaded End (NPT/BSP), or Sanitary Fittings |
| Form | Round, Square, Rectangular, U-bend, Coil |
| Certification | EN 10204 3.1/3.2, NACE MR0175, ISO 9001, PED 2014/68/EU |
| Testing | Hydrostatic, PMI, Ultrasonic, Radiography, Hardness, IGC |
| Packaging | Plastic-capped ends, Wooden boxes/crates, Bubble wrap, Export-standard packaging |
| Application Sectors | Pharmaceuticals, Food & Beverage, Biotechnology, Marine, Oil & Gas, Chemical, Power |
Sumer Metal Industries is a trusted exporter of Inconel 625 sanitary tubes, supplying to global markets including Oman, Qatar, Saudi Arabia, UAE, Kuwait, Spain, Germany, the USA, Canada, and several regions across Africa. The company provides full traceability through material test certificates (EN 10204 3.1/3.2), third-party inspection, and compliance with international norms. Their dedicated export team ensures smooth logistics and documentation support, meeting the regulatory needs of both government and private sector clients.
Chemical Composition of Inconal 625Sanitary tubes
| Element | Minimum (%) | Maximum (%) |
|---|---|---|
| Nickel (Ni) | Balance | — |
| Chromium (Cr) | 20.0 | 23.0 |
| Molybdenum (Mo) | 8.0 | 10.0 |
| Niobium + Tantalum (Nb + Ta) | 3.15 | 4.15 |
| Iron (Fe) | — | 5.0 |
| Carbon (C) | — | 0.10 |
| Manganese (Mn) | — | 0.50 |
| Silicon (Si) | — | 0.50 |
| Sulfur (S) | — | 0.015 |
| Phosphorus (P) | — | 0.015 |
| Cobalt (Co) | — | 1.0 |
| Aluminum (Al) | — | 0.40 |
| Titanium (Ti) | — | 0.40 |
With a proven track record as a Inconal 625Sanitary tubes exporter in over 30 countries, Sumer Metal Industries ensures global availability, third-party inspection support, and client-specific customization. Our wide export network combined with strict quality standards has made us a preferred choice for Inconal 625 tubing worldwide.
Specification of Inconal 625Sanitary tubes
| Parameter | Specification |
|---|---|
| Material Grade | Inconel® 625 / UNS N06625 / W.Nr. 2.4856 |
| Product Type | Sanitary Tubes (Seamless / Welded) |
| Standards | ASTM B444 / B704 / B705, ASME SB444 / SB704 / SB705 |
| Outer Diameter (OD) | 6 mm to 114.3 mm (1/4" to 4.5") |
| Wall Thickness | 0.5 mm to 10 mm (Sch 5S to Sch 40S or customized) |
| Tube Length | Single Random (4–7 meters), Double Random (7–13 meters), or Custom Cut Lengths |
| Finish Options | Bright Annealed, Polished, Pickled, Mirror Finish (No. 4 / No. 8), Electropolished |
| End Connections | Plain End (PE), Beveled End (BE), Threaded End (NPT/BSP), or Sanitary Fittings |
| Form | Round, Square, Rectangular, U-bend, Coil |
| Certification | EN 10204 3.1/3.2, NACE MR0175, ISO 9001, PED 2014/68/EU |
| Testing | Hydrostatic, PMI, Ultrasonic, Radiography, Hardness, IGC |
| Packaging | Plastic-capped ends, Wooden boxes/crates, Bubble wrap, Export-standard packaging |
| Application Sectors | Pharmaceuticals, Food & Beverage, Biotechnology, Marine, Oil & Gas, Chemical, Power |
🏭 Industry & Application
- ✅ Inconal 625 Sanitary Tubes for Medical Industry
- ✅ Inconal 625 Sanitary Tubes for Chemical Processing
- ✅ Inconal 625 Tubes for Sanitary Lines
- ✅ Inconal 625 Sanitary tubes for Gas & Liquid Flow
- ✅ Inconal 625 Tubes for Heat Exchangers
❓ Frequently Asked Questions (FAQs)
Q1: What are Inconel 625 Sanitary Tubes used for?
Inconel 625 sanitary tubes are primarily used in applications where hygiene and corrosion resistance are critical. These include pharmaceuticals, food and beverage processing, biotechnology, marine systems, offshore platforms, chemical processing, and high-temperature environments. The smooth inner finish and excellent resistance to pitting, crevice corrosion, and stress corrosion cracking make them ideal for sanitary installations.
Q2: What makes Inconel 625 suitable for sanitary tube applications?
Inconel 625 is a nickel-based superalloy known for its excellent corrosion resistance, mechanical strength, and ability to perform in both high and low-temperature environments. For sanitary applications, its non-reactive surface, resistance to chemical cleaning agents, and ease of welding make it a preferred material. Tubes can also be finished with mirror polishing or electropolishing to meet clean-in-place (CIP) and sterilize-in-place (SIP) system requirements.
Q3: What standards and certifications do Inconel 625 sanitary tubes comply with?
Inconel 625 sanitary tubes from reputed manufacturers like Sumer Metal Industries Private Limited comply with ASTM B444, ASME SB444, and other relevant standards. They are delivered with EN 10204 3.1/3.2 test certificates, along with third-party inspection reports (if required), and can be certified under NACE MR0175, ISO 9001, and PED (EU Pressure Equipment Directive) regulations.
