Inconel-718-825-Condenser tubes, Inconel 718/825 Condenser Tube Manufacturer,Inconel 718/825 Condenser Tube Supplier, Inconel 718/825 Condenser Tube Exporter,Inconel 718/825 Precision Tubing, Inconel 718/825 Small Diameter Tube ,Inconel 718/825 Condenser Tubes

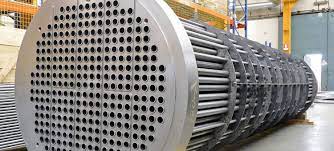

Inconel 718 and Incoloy 825 condenser tubes are high-performance nickel-based alloys designed for extreme environments. Known for their exceptional strength, corrosion resistance, and high-temperature stability, these tubes are widely used in power plants, chemical processing, marine, and aerospace applications. Sumer Metal Industries Pvt. Ltd. manufactures, supplies, and exports these premium tubes globally.
Sumer Metal Industries ensures that Inconel 718 and Incoloy 825 condenser tubes are produced following stringent international standards. Using advanced metallurgical techniques, they maintain precise control over chemical composition, microstructure, and mechanical properties. This guarantees durability, consistency, and reliability in demanding industrial conditions.
Sumer Metal Industries exports Inconel 718 and Incoloy 825 tubes to countries including Oman, Qatar, Saudi Arabia, the UAE, Kuwait, Spain, Germany, the USA, Canada, and several regions across Africa. Their global distribution ensures clients have access to high-quality condenser tubes, backed by timely delivery and excellent service.
Inconel 718 tubes are particularly valued in high-temperature applications such as steam turbines, nuclear reactors, and aerospace engines due to their ability to retain strength at elevated temperatures. Incoloy 825 tubes, on the other hand, are ideal for chemical and petrochemical industries where resistance to strong acids, chlorides, and other corrosive media is critical.
Specification of Inconel-718-825-Condenser tubes
| Specification | Inconel 718 | Incoloy 825 |
|---|---|---|
| UNS Number | N07718 | N08825 |
| W.Nr. | 2.4668 | 2.4858 |
| Nickel (Ni) | 50.0–55.0% | 38.0–46.0% |
| Chromium (Cr) | 17.0–21.0% | 19.5–23.5% |
| Molybdenum (Mo) | 2.8–3.3% | 2.5–3.5% |
| Niobium (Nb) / Titanium (Ti) | Nb: 4.75–5.50%, Ti: 0.65–1.15% | Ti: 0.6–1.2% |
| Aluminum (Al) | 0.2–0.8% | 0.2–0.6% |
| Iron (Fe) | Balance | 22.5–26.5% |
| Copper (Cu) | – | 1.5–3.0% |
| Tensile Strength | 1270 MPa (185 ksi) | 690 MPa (100 ksi) |
| Yield Strength | 1100 MPa (160 ksi) | 310 MPa (45 ksi) |
| Elongation at Break | 15–30% | 45% |
| Density | 8.19 g/cm³ | 8.14 g/cm³ |
| Melting Point | 1,300°C (2,372°F) | 1,385°C (2,525°F) |
| Applications | Power plants, Aerospace, Nuclear, Marine | Chemical, Petrochemical, Marine, Heat exchangers |
The chemical composition of Inconel 718 includes nickel (50–55%), chromium (17–21%), molybdenum, niobium, titanium, and aluminum, while Incoloy 825 contains nickel (38–46%), chromium (19.5–23.5%), iron, molybdenum, copper, titanium, and aluminum. This combination ensures optimal corrosion resistance, toughness, and performance in harsh environments.
Chemical Composition of Inconel-718-825-Condenser tubes
| Element | Inconel 718 (%) | Incoloy 825 (%) |
|---|---|---|
| Nickel (Ni) | 50.0 – 55.0 | 38.0 – 46.0 |
| Chromium (Cr) | 17.0 – 21.0 | 19.5 – 23.5 |
| Molybdenum (Mo) | 2.8 – 3.3 | 2.5 – 3.5 |
| Niobium (Nb) | 4.75 – 5.50 | – |
| Titanium (Ti) | 0.65 – 1.15 | 0.6 – 1.2 |
| Aluminum (Al) | 0.2 – 0.8 | 0.2 – 0.6 |
| Iron (Fe) | Balance | 22.5 – 26.5 |
| Copper (Cu) | – | 1.5 – 3.0 |
With a proven track record as a Inconel-718-825-Condenser tubes exporter in over 30 countries, Sumer Metal Industries ensures global availability, third-party inspection support, and client-specific customization. Our wide export network combined with strict quality standards has made us a preferred choice for SS 718/825 tubing worldwide.
Specification of Inconel-718-825-Condenser tubes
| Specification | Inconel 718 | Incoloy 825 |
|---|---|---|
| UNS Number | N07718 | N08825 |
| W.Nr. | 2.4668 | 2.4858 |
| Nickel (Ni) | 50.0–55.0% | 38.0–46.0% |
| Chromium (Cr) | 17.0–21.0% | 19.5–23.5% |
| Molybdenum (Mo) | 2.8–3.3% | 2.5–3.5% |
| Niobium (Nb) / Titanium (Ti) | Nb: 4.75–5.50%, Ti: 0.65–1.15% | Ti: 0.6–1.2% |
| Aluminum (Al) | 0.2–0.8% | 0.2–0.6% |
| Iron (Fe) | Balance | 22.5–26.5% |
| Copper (Cu) | – | 1.5–3.0% |
| Tensile Strength | 1270 MPa (185 ksi) | 690 MPa (100 ksi) |
| Yield Strength | 1100 MPa (160 ksi) | 310 MPa (45 ksi) |
| Elongation at Break | 15–30% | 45% |
| Density | 8.19 g/cm³ | 8.14 g/cm³ |
| Melting Point | 1,300°C (2,372°F) | 1,385°C (2,525°F) |
| Applications | Power plants, Aerospace, Nuclear, Marine | Chemical, Petrochemical, Marine, Heat exchangers |
🏭 Industry & Application
- ✅ SS 718/825 Condenser Tubes for Medical Industry
- ✅ SS 718/825 Condenser Tubes for Chemical Processing
- ✅ SS 718/825 Tubes for Condenser Lines
- ✅ Inconel 718/825 Condenser tubes for Gas & Liquid Flow
- ✅ SS 718/825 Tubes for Heat Exchangers
❓ Frequently Asked Questions (FAQs)
1. What are Inconel 718 and 825 condenser tubes?
Inconel 718 and 825 are high-performance nickel-based alloys used in condenser tubes for their excellent corrosion resistance, high strength, and ability to withstand extreme temperatures in industrial applications.
2. What industries use Inconel 718 & 825 condenser tubes?
These tubes are widely used in power plants, chemical processing, oil and gas, desalination plants, and marine industries where resistance to high temperature and corrosive environments is critical.
3. What are the key advantages of Inconel 718 & 825 condenser tubes?
They offer exceptional corrosion resistance against chloride and acidic environments, excellent mechanical strength at elevated temperatures, long service life, and minimal maintenance requirements.
4. What is the temperature range for Inconel 718 & 825 tubes?
Inconel 718 tubes can typically handle temperatures up to 700°C, while Inconel 825 tubes perform reliably in temperatures up to 600°C, making them suitable for high-temperature heat exchangers and condensers.
5. How do I select between Inconel 718 and 825?
Selection depends on the application requirements: Inconel 718 provides higher strength at elevated temperatures, while Inconel 825 offers superior resistance to general corrosion, especially in acidic and chloride-rich environments.
6. Are Inconel 718 & 825 condenser tubes customizable?
Yes, these tubes can be manufactured in various diameters, wall thicknesses, and lengths according to the specific design requirements of condensers and heat exchangers.
7. How should Inconel 718 & 825 tubes be maintained?
Regular inspection for deposits and corrosion is recommended. Cleaning should be done with non-abrasive techniques to maintain efficiency and prolong tube life.
