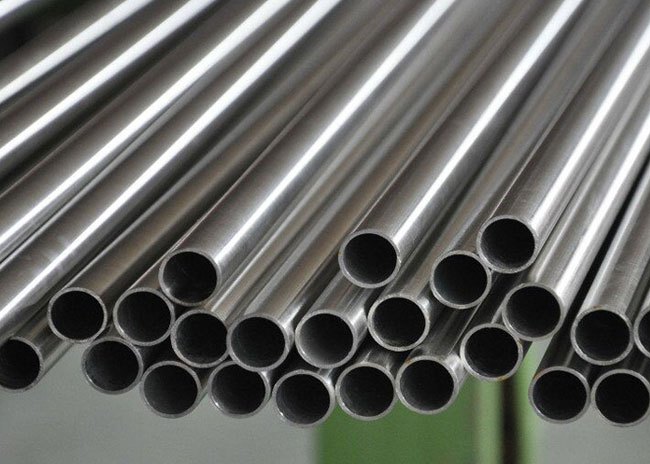

Monel 400 K400 Sanitary tubes , Monel 400 K400 Sanitary Tube Manufacturer, Monel 400 K400 Sanitary Tube Supplier, Monel 400 K400 Sanitary Tube Exporter, Monel 400 K400 Precision Tubing, Monel 400 K400 Small Diameter Tube , Monel 400 K400 Sanitary Tubes
Monel 400, also referred to as Alloy 400 or UNS N04400, is a solid-solution alloy primarily composed of nickel (approximately 67%) and copper. The K400 designation refers to the same alloy but often in a specific form or temper that is optimized for particular applications. Known for its outstanding resistance to seawater, steam, and corrosive chemicals such as sulfuric and hydrofluoric acids, Monel 400 is widely used in marine, chemical, and aerospace industries. Its excellent mechanical properties at sub-zero temperatures also make it a suitable material in extreme environments.
Monel 400/K400 sanitary tubes are specialized tubular components designed for applications requiring high cleanliness, corrosion resistance, and structural integrity. These tubes typically meet strict sanitary standards such as ASTM B165 or ASME SB-165, and are often produced with a polished interior surface finish (usually 180 grit or better) to prevent contamination and support easy cleaning. Sizes can range from small-diameter tubing for laboratory systems to larger sizes used in process plants, with options for seamless or welded constructions.
One of the standout features of Monel 400 sanitary tubes is their superior corrosion resistance. They are particularly effective in environments containing saltwater, acids, alkalis, and organic substances, which can rapidly degrade other materials. This makes them ideal for applications in industries like food processing, pharmaceuticals, and chemical transport, where both hygiene and material integrity are paramount. The alloy’s natural resistance to stress corrosion cracking and pitting enhances the longevity and reliability of the tubing.
Monel 400/K400 sanitary tubes are employed in a variety of critical sectors. In the food and beverage industry, they are used for transporting liquids under sterile conditions. In the pharmaceutical sector, the tubes are key to maintaining clean and inert pathways for sensitive compounds. In chemical plants and offshore oil rigs, their resilience against corrosive agents is indispensable. Furthermore, these tubes are used in heat exchangers, instrumentation lines, and high-purity water systems due to their strength and cleanliness.
Specification of Monel 400 K400 Sanitary tubes
| Property | Specification |
|---|---|
| Material Name | Monel 400 / K400 |
| UNS Number | N04400 |
| Standards | ASTM B165 / ASME SB165, ASTM B725 (welded), ASTM B775 (seamless) |
| Nominal Composition | Nickel (Ni) ~ 63%, Copper (Cu) ~ 28-34%, plus small amounts of Fe, Mn, Si, C |
| Tube Type | Seamless or Welded |
| Outer Diameter Range | 6.35 mm to 101.6 mm (1/4" to 4") |
| Wall Thickness | 0.5 mm to 3 mm (custom thicknesses available upon request) |
| Surface Finish (ID/OD) | 180 grit minimum, electropolished if required; Ra ≤ 0.51 µm (≤ 20 µin) |
| Manufacturing Method | Cold drawn (seamless), TIG welded (welded type) |
| Tensile Strength | ≥ 550 MPa (80 ksi) |
| Yield Strength (0.2% Offset) | ≥ 240 MPa (35 ksi) |
| Elongation | ≥ 30% |
| Hardness | ≤ 75 HRB |
| Melting Range | 1300–1350 °C (2370–2460 °F) |
| Maximum Working Temperature | Up to 480 °C (900 °F) |
| Corrosion Resistance | Excellent in seawater, acids, alkalis, and various chemical media |
| Cleanliness Standards | Compliant with ASME BPE, 3-A Sanitary Standards (optional) |
| End Connections | Plain end, beveled, or customized (TC clamp, flanged, etc.) |
| Certifications | EN 10204 3.1 / 3.2, NACE MR0175/ISO 15156 (on request) |
| Applications | Pharmaceutical, food & beverage, marine, chemical processing, oil & gas |
Producing Monel 400 sanitary tubes involves precise alloying, cold working, and stringent quality controls to meet global standards. Techniques like electropolishing and passivation are used to enhance the surface finish and cleanliness of the tubes. Manufacturers often perform testing such as hydrostatic pressure tests, eddy current inspection, and surface roughness evaluations to ensure sanitary compliance. Certification (such as EN 10204 3.1) is typically provided to validate the chemical composition, mechanical properties, and traceability of the tubing, giving end-users confidence in their performance and safety.
Chemical Composition of Monel 400 K400 Sanitary tubes
| Element | Composition (% by weight) |
|---|---|
| Nickel (Ni) | ≥ 63.0% (typically 63–70%) |
| Copper (Cu) | 28.0 – 34.0% |
| Iron (Fe) | ≤ 2.5% |
| Manganese (Mn) | ≤ 2.0% |
| Silicon (Si) | ≤ 0.5% |
| Carbon (C) | ≤ 0.3% |
| Sulfur (S) | ≤ 0.024% |
In summary, Monel 400 / K400 Sanitary tubes combine the critical qualities of high strength, corrosion resistance, and reliability in a single material. Their robust performance in harsh environments, along with adherence to international quality standards, makes them a trusted choice for Sanitary and control applications worldwide. Whether used in upstream oil operations or chemical manufacturing plants, these tubes ensure long-term service with minimal maintenance and high operational efficiency.
Specification of Monel 400 K400 Sanitary tubes
| Property | Specification |
|---|---|
| Material Name | Monel 400 / K400 |
| UNS Number | N04400 |
| Standards | ASTM B165 / ASME SB165, ASTM B725 (welded), ASTM B775 (seamless) |
| Nominal Composition | Nickel (Ni) ~ 63%, Copper (Cu) ~ 28-34%, plus small amounts of Fe, Mn, Si, C |
| Tube Type | Seamless or Welded |
| Outer Diameter Range | 6.35 mm to 101.6 mm (1/4" to 4") |
| Wall Thickness | 0.5 mm to 3 mm (custom thicknesses available upon request) |
| Surface Finish (ID/OD) | 180 grit minimum, electropolished if required; Ra ≤ 0.51 µm (≤ 20 µin) |
| Manufacturing Method | Cold drawn (seamless), TIG welded (welded type) |
| Tensile Strength | ≥ 550 MPa (80 ksi) |
| Yield Strength (0.2% Offset) | ≥ 240 MPa (35 ksi) |
| Elongation | ≥ 30% |
| Hardness | ≤ 75 HRB |
| Melting Range | 1300–1350 °C (2370–2460 °F) |
| Maximum Working Temperature | Up to 480 °C (900 °F) |
| Corrosion Resistance | Excellent in seawater, acids, alkalis, and various chemical media |
| Cleanliness Standards | Compliant with ASME BPE, 3-A Sanitary Standards (optional) |
| End Connections | Plain end, beveled, or customized (TC clamp, flanged, etc.) |
| Certifications | EN 10204 3.1 / 3.2, NACE MR0175/ISO 15156 (on request) |
| Applications | Pharmaceutical, food & beverage, marine, chemical processing, oil & gas |
🏭 Industry & Application
- ✅ Monel 400 K400 Sanitary tubes for Medical Industry
- ✅ Monel 400 K400 Sanitary tubes for Chemical Processing
- ✅ Monel 400 K400 Sanitary tubes for Sanitary Lines
- ✅ Monel 400 K400 Sanitary tubes for Gas & Liquid Flow
- ✅ Monel 400 K400 Sanitary tubes for Heat Exchangers
❓ Frequently Asked Questions (FAQs)
Q1:What is the difference between Monel 400 and K400?
There is no chemical difference between Monel 400 and K400. "K400" is often used as an alternative label or trade name for Monel 400, particularly in certain industries or product forms. Both refer to the same nickel-copper alloy with identical properties.
Q2:What makes Monel 400 suitable for sanitary applications?
Monel 400 offers excellent corrosion resistance, especially in seawater, acids, and alkalis. For sanitary tubes, it is manufactured with a smooth, often electropolished internal surface (low Ra), making it ideal for hygienic applications like food, pharmaceutical, and biotech processes.
Q3:Is Monel 400 resistant to corrosion?
Yes. Monel 400 is highly resistant to a wide range of corrosive environments, including seawater, hydrofluoric acid, sulfuric acid, and alkalis. This makes it suitable for both industrial and sanitary environments where corrosion control is critical.
