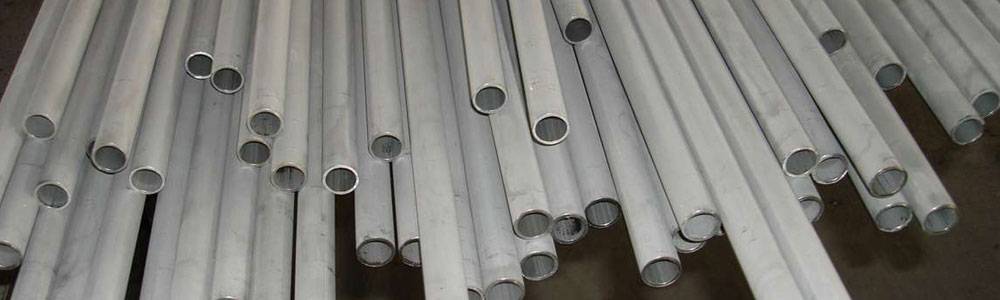

Super Duplex Steel S32760 Instrumentation Tubes are precision-engineered tubing products manufactured using a highly alloyed grade of stainless steel. This material, designated as UNS S32760, combines high strength with outstanding corrosion resistance, making it ideal for use in demanding industrial environments. These tubes are specifically designed for carrying instrumentation signals, hydraulic fluids, or chemical injections in systems where reliability, corrosion resistance, and mechanical performance are critical.
S32760 is a super duplex stainless steel, characterized by a two-phase microstructure of austenite and ferrite, which provides it with exceptional strength—nearly twice that of conventional austenitic stainless steels. It contains high levels of chromium (24–26%), molybdenum (3–4%), and nitrogen, along with additions of copper and tungsten. This unique composition results in excellent resistance to pitting, crevice corrosion, and chloride stress corrosion cracking, even in aggressive environments such as seawater or acidic chemical processing plants.
Super Duplex S32760 Instrumentation Tubes are commonly used in industries such as offshore oil and gas, petrochemicals, chemical processing, desalination, and marine engineering. These tubes are essential for precise transmission of fluid or gas in control systems, instrumentation panels, and chemical injection systems. Their strength and corrosion resistance also make them suitable for high-pressure environments and sour service applications compliant with NACE MR0175 / ISO 15156.
These instrumentation tubes are available in seamless and welded forms, with outer diameters typically ranging from 6 mm to 25.4 mm (1/4" to 1"). They are manufactured to meet stringent international standards such as ASTM A789 and ASTM A790. Tubes can be supplied in straight lengths or coils, and are often cold-worked to ensure high dimensional accuracy, smooth internal surfaces, and consistent mechanical performance under pressure.
Specification of Super Duplex Steel S32760 Instrumentation Tubes
| Category | Specification |
|---|---|
| Material Grade | Super Duplex Stainless Steel – UNS S32760 (W.Nr. 1.4501) |
| Standards | ASTM A789 / A790, ASME SA789 / SA790, NACE MR0175 / ISO 15156 |
| Form | Seamless or Welded Instrumentation Tubes |
| Outer Diameter Range | 6.0 mm to 25.4 mm (1/4" to 1") |
| Wall Thickness | 0.5 mm to 2.5 mm (custom as per requirement) |
| Length | Straight lengths up to 6 meters or coil form (custom lengths available) |
| Surface Finish | Bright annealed or polished |
| Tensile Strength | ≥ 750 MPa (min) |
| Yield Strength (0.2%) | ≥ 550 MPa (min) |
| Elongation | ≥ 25% |
| Hardness | ≤ 28 HRC |
| Density | 7.8 g/cm³ |
| Operating Temperature | -50°C to +300°C (approximate, depending on pressure and media) |
| PREN (Pitting Resistance Equivalent Number) | >40 (indicating excellent pitting resistance) |
The use of Super Duplex S32760 Instrumentation Tubes offers numerous operational advantages, including longer service life, reduced maintenance, and superior performance in harsh environments. Their high strength allows for thinner walls, reducing overall weight and cost in system design. Whether in subsea control lines, hydraulic systems, or aggressive chemical service, these tubes deliver outstanding performance where conventional stainless steel tubing would fail.
Chemical Composition of Super Duplex Steel S32760 Instrumentation Tubes
| Element | Min | Max |
|---|---|---|
| Chromium (Cr) | 24.0 | 26.0 |
| Nickel (Ni) | 6.0 | 8.0 |
| Molybdenum (Mo) | 3.0 | 4.0 |
| Nitrogen (N) | 0.2 | 0.3 |
| Copper (Cu) | 0.5 | 1.0 |
| Tungsten (W) | 0.5 | 1.0 |
| Carbon (C) | — | 0.03 |
| Manganese (Mn) | — | 1.0 |
| Silicon (Si) | — | 1.0 |
| Phosphorus (P) | — | 0.035 |
| Sulfur (S) | — | 0.010 |
| Iron (Fe) | Balance |
With a proven track record as a Super Duplex Steel S32760 Instrumentation Tubes exporter in over 30 countries, Sumer Metal Industries ensures global availability, third-party inspection support, and client-specific customization. Our wide export network combined with strict quality standards has made us a preferred choice for SS 32760 tubing worldwide.
Specification of Super Duplex Steel S32760 Instrumentation Tubes
| Category | Specification |
|---|---|
| Material Grade | Super Duplex Stainless Steel – UNS S32760 (W.Nr. 1.4501) |
| Standards | ASTM A789 / A790, ASME SA789 / SA790, NACE MR0175 / ISO 15156 |
| Form | Seamless or Welded Instrumentation Tubes |
| Outer Diameter Range | 6.0 mm to 25.4 mm (1/4" to 1") |
| Wall Thickness | 0.5 mm to 2.5 mm (custom as per requirement) |
| Length | Straight lengths up to 6 meters or coil form (custom lengths available) |
| Surface Finish | Bright annealed or polished |
| Tensile Strength | ≥ 750 MPa (min) |
| Yield Strength (0.2%) | ≥ 550 MPa (min) |
| Elongation | ≥ 25% |
| Hardness | ≤ 28 HRC |
| Density | 7.8 g/cm³ |
| Operating Temperature | -50°C to +300°C (approximate, depending on pressure and media) |
| PREN (Pitting Resistance Equivalent Number) | >40 (indicating excellent pitting resistance) |
🏭 Industry & Application
- ✅ Super Duplex 32760 Instrumentation Tubes for Medical Industry
- ✅ Super Duplex 32760 Instrumentation Tubes for Chemical Processing
- ✅ Super Duplex 32760 Tubes for Instrumentation Lines
- ✅ Super Duplex S32760 Instrumentation Tubes for Gas & Liquid Flow
- ✅ Super Duplex 32760 Tubes for Heat Exchangers
❓ Frequently Asked Questions (FAQs)
Q1:What is Super Duplex Steel S32760?
Super Duplex Steel S32760 is a high-alloy stainless steel combining austenitic and ferritic microstructures. It offers excellent corrosion resistance, especially in aggressive environments like seawater, and has nearly double the strength of conventional stainless steels.
Q2:What are Super Duplex S32760 instrumentation tubes used for?
These tubes are used in high-pressure and corrosive applications, such as offshore oil and gas platforms, chemical processing plants, hydraulic and pneumatic systems, and instrumentation/control systems.
Q3:Are these tubes suitable for sour service?
Yes. Super Duplex S32760 complies with NACE MR0175 / ISO 15156, making it suitable for sour service environments containing hydrogen sulfide (H₂S).
