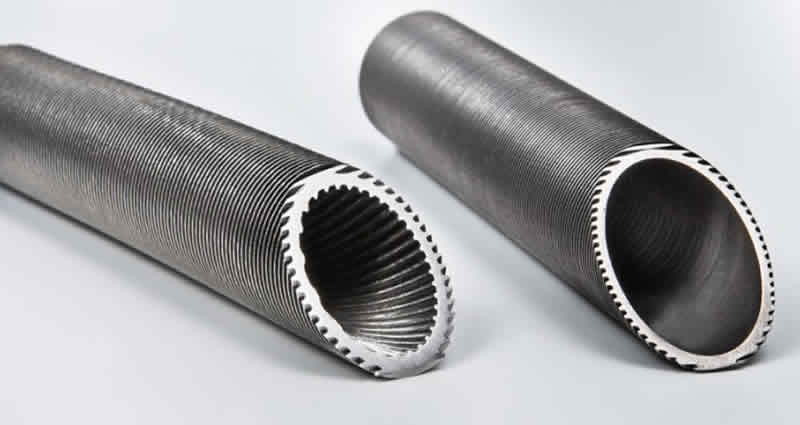

Titanium Grade 1 fin tubes are precision-engineered components used in high-performance heat exchanger systems where superior corrosion resistance and efficient thermal conductivity are essential. Made from commercially pure titanium (UNS R50250), Grade 1 is the softest and most ductile among titanium grades, offering excellent formability and weldability. These tubes are equipped with external fins that significantly increase surface area, enhancing heat transfer between fluids while maintaining durability in aggressive environments.
Titanium Grade 1 is known for its outstanding corrosion resistance, particularly in chloride-rich and oxidizing environments such as seawater, saltwater brines, and certain acidic solutions. Its low density (4.51 g/cm³) makes it an attractive choice for applications requiring both strength and weight reduction. Mechanical properties include a tensile strength of approximately 240 MPa and excellent elongation, allowing the tubes to withstand mechanical and thermal stress without cracking or deforming.
Titanium Grade 1 fin tubes are available in a range of sizes and configurations to suit different heat exchanger designs. Fin types include integral (extruded), welded, or sleeved fins, with varying fin heights, thicknesses, and densities based on application requirements. These fins allow for greater thermal efficiency by increasing the contact area exposed to the working medium. Tubes are typically produced to ASTM B338 standards, ensuring quality and reliability in demanding service conditions.
These finned tubes are widely used in industries where both thermal performance and corrosion resistance are critical. Common applications include seawater-cooled heat exchangers, desalination plants, marine HVAC systems, power generation units, offshore oil and gas installations, and chemical processing facilities. Their non-magnetic and non-toxic properties also make them suitable for sensitive chemical and pharmaceutical operations.
Specification of Titanium Grade 1 Fin Tubes
| Parameter | Specification |
|---|---|
| Material Grade | Titanium Grade 1 (UNS R50250) |
| Standard Compliance | ASTM B338 / ASME SB338 |
| Tube Type | Seamless or Welded |
| Fin Type | Integral (extruded), Welded, or Sleeved |
| Outer Diameter (OD) | 12 mm to 38 mm (custom sizes available) |
| Wall Thickness | 0.5 mm to 2.5 mm |
| Fin Height | 6.35 mm to 12.7 mm (1/4" to 1/2") |
| Fin Pitch (Fins per Inch) | 5 to 11 FPI (customizable) |
| Tube Length | Up to 12 meters (or as specified by customer) |
| Thermal Conductivity | ~17 W/m·K |
| Tensile Strength | Min. 240 MPa (35 ksi) |
| Yield Strength | Min. 170 MPa (25 ksi) |
| Elongation | ≥ 24% |
| Density | 4.51 g/cm³ |
| Operating Temperature | -250°C to +315°C (-418°F to 600°F) |
| Corrosion Resistance | Excellent resistance to seawater, chlorides, oxidizing acids, and biofouling |
| Applications | Heat exchangers, condensers, desalination, marine systems, chemical processing |
| Weldability/Formability | Excellent |
Titanium Grade 1 fin tubes offer a unique combination of advantages: long service life, low maintenance, excellent heat transfer efficiency, and reduced risk of corrosion-induced failure. Their ability to operate reliably in extreme environments reduces downtime and operational costs over the long term. As environmental regulations and efficiency demands increase, these tubes provide a sustainable and high-performance solution for modern heat exchange systems.
Chemical Composition of Titanium Grade 1 Fin Tubes
| Element | Symbol | Maximum Content (%) |
|---|---|---|
| Iron | Fe | 0.20 |
| Oxygen | O | 0.18 |
| Carbon | C | 0.08 |
| Nitrogen | N | 0.03 |
| Hydrogen | H | 0.015 |
| Titanium | Ti | Balance |
With a proven track record as a Titanium Grade 1 Fin Tubes exporter in over 30 countries, Sumer Metal Industries ensures global availability, third-party inspection support, and client-specific customization. Our wide export network combined with strict quality standards has made us a preferred choice for SS Grade 1 tubing worldwide.
Specification of Titanium Grade 1 Fin Tubes
| Parameter | Specification |
|---|---|
| Material Grade | Titanium Grade 1 (UNS R50250) |
| Standard Compliance | ASTM B338 / ASME SB338 |
| Tube Type | Seamless or Welded |
| Fin Type | Integral (extruded), Welded, or Sleeved |
| Outer Diameter (OD) | 12 mm to 38 mm (custom sizes available) |
| Wall Thickness | 0.5 mm to 2.5 mm |
| Fin Height | 6.35 mm to 12.7 mm (1/4" to 1/2") |
| Fin Pitch (Fins per Inch) | 5 to 11 FPI (customizable) |
| Tube Length | Up to 12 meters (or as specified by customer) |
| Thermal Conductivity | ~17 W/m·K |
| Tensile Strength | Min. 240 MPa (35 ksi) |
| Yield Strength | Min. 170 MPa (25 ksi) |
| Elongation | ≥ 24% |
| Density | 4.51 g/cm³ |
| Operating Temperature | -250°C to +315°C (-418°F to 600°F) |
| Corrosion Resistance | Excellent resistance to seawater, chlorides, oxidizing acids, and biofouling |
| Applications | Heat exchangers, condensers, desalination, marine systems, chemical processing |
| Weldability/Formability | Excellent |
🏭 Industry & Application
- ✅ Titanium Grade 1 Fin Tubes for Medical Industry
- ✅ Titanium Grade 1 Fin Tubes for Chemical Processing
- ✅ Titanium Grade 1 Tubes for Fin Lines
- ✅ Titanium Grade 1 Fin Tubes for Gas & Liquid Flow
- ✅ Titanium Grade 1 Tubes for Heat Exchangers
❓ Frequently Asked Questions (FAQs)
Q1:What are Titanium Grade 1 fin tubes?
Titanium Grade 1 fin tubes are heat exchanger tubes made from commercially pure titanium (UNS R50250) with external fins to enhance surface area and improve heat transfer efficiency. They are widely used in corrosive environments like seawater and chemical processing applications.
Q2:What is the difference between Grade 1 titanium and other titanium grades?
Grade 1 titanium is the softest and most ductile of all commercially pure titanium grades. It offers the highest corrosion resistance and excellent formability, making it ideal for applications that require bending, welding, and long-term exposure to harsh environments.
Q3:What standards do Titanium Grade 1 fin tubes comply with?
These tubes are typically manufactured according to ASTM B338 or ASME SB338 standards for seamless and welded titanium tubes used in heat exchanger and condenser applications.
