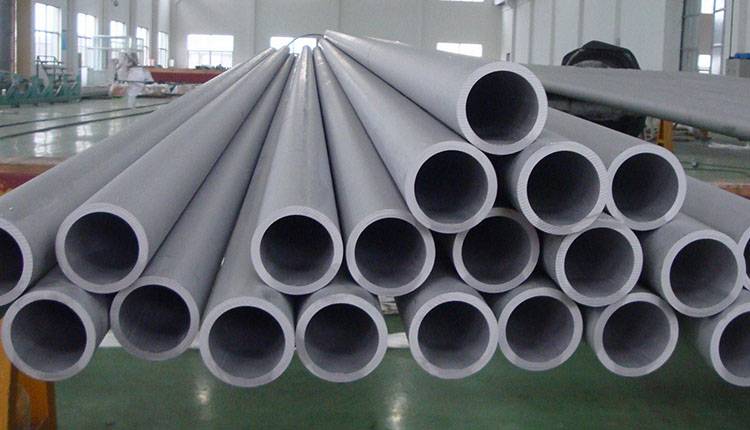

Titanium Grade 2 Sanitary Tubes are widely recognized for their excellent corrosion resistance, high strength-to-weight ratio, and biocompatibility, making them a preferred choice in industries where hygiene and durability are essential. These tubes are made from commercially pure titanium (Grade 2), which offers a good balance between formability and mechanical strength. Their non-toxic and non-reactive properties make them especially suitable for use in sectors such as pharmaceuticals, food processing, and biotechnology, where contamination must be strictly avoided.
One of the defining characteristics of Titanium Grade 2 Sanitary Tubes is their outstanding corrosion resistance. Unlike stainless steel, which may corrode over time in aggressive environments, titanium naturally forms a passive oxide layer that protects the surface from chemicals, acids, and chlorides. This makes the tubes ideal for systems that carry highly reactive or corrosive substances, ensuring long-term reliability and reducing maintenance needs.
In terms of performance, Titanium Grade 2 provides moderate strength while remaining significantly lighter than steel. This lower weight does not compromise its durability, making it easier to transport and install, especially in complex piping systems. The tubes also retain their mechanical properties across a broad temperature range, ensuring consistent performance in both hot and cold processes.
Another critical advantage is the sanitary finish of these tubes, which typically involves smooth interior surfaces with low roughness values. This feature prevents the buildup of bacteria and other contaminants, ensuring compliance with strict sanitary regulations. The ease of cleaning and sterilization makes them particularly suitable for clean-in-place (CIP) systems and applications requiring frequent sanitation.
Specification of Titanium Grade 2 Sanitary Tubes
| Specification | Details |
|---|---|
| Material Grade | Titanium Grade 2 (UNS R50400) |
| Standards | ASTM B338, ASTM B861, ASTM B337, ASME SB338, SB861 |
| Type | Seamless / Welded Sanitary Tubes |
| Outer Diameter (OD) | 6 mm to 114.3 mm (1/4" to 4.5") |
| Wall Thickness | 0.5 mm to 5 mm (customizable per requirement) |
| Length | Up to 6 meters (custom cut lengths available) |
| Surface Finish | Polished (Ra ≤ 0.8 µm or better for sanitary use) |
| Tensile Strength | Min. 345 MPa (50 ksi) |
| Yield Strength | Min. 275 MPa (40 ksi) |
| Elongation | ≥ 20% |
| Density | 4.51 g/cm³ |
| Melting Point | ~1,668 °C (3,034 °F) |
| Corrosion Resistance | Excellent – resistant to chlorides, acids, and oxidizing environments |
| Applications | Pharmaceutical, Food & Beverage, Biotech, Chemical Processing |
| Certifications | ISO 9001, PED, 3.1 Material Certificate, FDA compliant (for sanitary uses) |
In summary, Titanium Grade 2 Sanitary Tubes combine strength, corrosion resistance, and cleanliness to deliver exceptional performance in demanding sanitary applications. Their use across industries such as food and beverage, pharmaceutical, and chemical processing demonstrates their versatility and long-term cost-effectiveness. For operations requiring both hygiene and durability, these tubes represent a highly reliable and sustainable solution.
Chemical Composition of Titanium Grade 2 Sanitary Tubes
| Element | Composition (%) | Notes |
|---|---|---|
| Titanium (Ti) | Balance | Primary element |
| Iron (Fe) | ≤ 0.30 | Minor alloying element |
| Oxygen (O) | ≤ 0.25 | Controls strength and ductility |
| Carbon (C) | ≤ 0.08 | Must be low for good weldability |
| Nitrogen (N) | ≤ 0.03 | Must be controlled for ductility |
| Hydrogen (H) | ≤ 0.015 | Very low to avoid embrittlement |
| Residuals | ≤ 0.40 (total max) | Sum of unspecified trace elements |
With a proven track record as a Titanium Grade 2 Sanitary Tubes exporter in over 30 countries, Sumer Metal Industries ensures global availability, third-party inspection support, and client-specific customization. Our wide export network combined with strict quality standards has made us a preferred choice for SS Grade 2 tubing worldwide.
Specification of Titanium Grade 2 Sanitary Tubes
| Specification | Details |
|---|---|
| Material Grade | Titanium Grade 2 (UNS R50400) |
| Standards | ASTM B338, ASTM B861, ASTM B337, ASME SB338, SB861 |
| Type | Seamless / Welded Sanitary Tubes |
| Outer Diameter (OD) | 6 mm to 114.3 mm (1/4" to 4.5") |
| Wall Thickness | 0.5 mm to 5 mm (customizable per requirement) |
| Length | Up to 6 meters (custom cut lengths available) |
| Surface Finish | Polished (Ra ≤ 0.8 µm or better for sanitary use) |
| Tensile Strength | Min. 345 MPa (50 ksi) |
| Yield Strength | Min. 275 MPa (40 ksi) |
| Elongation | ≥ 20% |
| Density | 4.51 g/cm³ |
| Melting Point | ~1,668 °C (3,034 °F) |
| Corrosion Resistance | Excellent – resistant to chlorides, acids, and oxidizing environments |
| Applications | Pharmaceutical, Food & Beverage, Biotech, Chemical Processing |
| Certifications | ISO 9001, PED, 3.1 Material Certificate, FDA compliant (for sanitary uses) |
🏭 Industry & Application
- ✅ Titanium Grade 2 Sanitary Tubes for Medical Industry
- ✅ Titanium Grade 2 Sanitary Tubes for Chemical Processing
- ✅ Titanium Grade 2 Tubes for Sanitary Lines
- ✅ Titanium Grade 2 Sanitary Tubes for Gas & Liquid Flow
- ✅ Titanium Grade 2 Tubes for Heat Exchangers
❓ Frequently Asked Questions (FAQs)
Q1:What are Titanium Grade 2 Sanitary Tubes used for?
Titanium Grade 2 sanitary tubes are used in industries that require high corrosion resistance and hygienic surfaces, such as pharmaceuticals, food & beverage processing, biotechnology, and chemical processing.
Q2:Why choose Grade 2 titanium for sanitary tubing?
Grade 2 titanium offers a unique combination of moderate strength, excellent corrosion resistance, biocompatibility, and weldability, making it ideal for sanitary applications where contamination must be avoided.
Q3:How do Titanium Grade 2 tubes compare to stainless steel?
While stainless steel is more common and affordable, titanium Grade 2 offers superior corrosion resistance (especially to chlorides and acids), lighter weight, and longer service life in aggressive environments.
